Q-switched ND YAG Laser Tattoo Removal Machine
Main

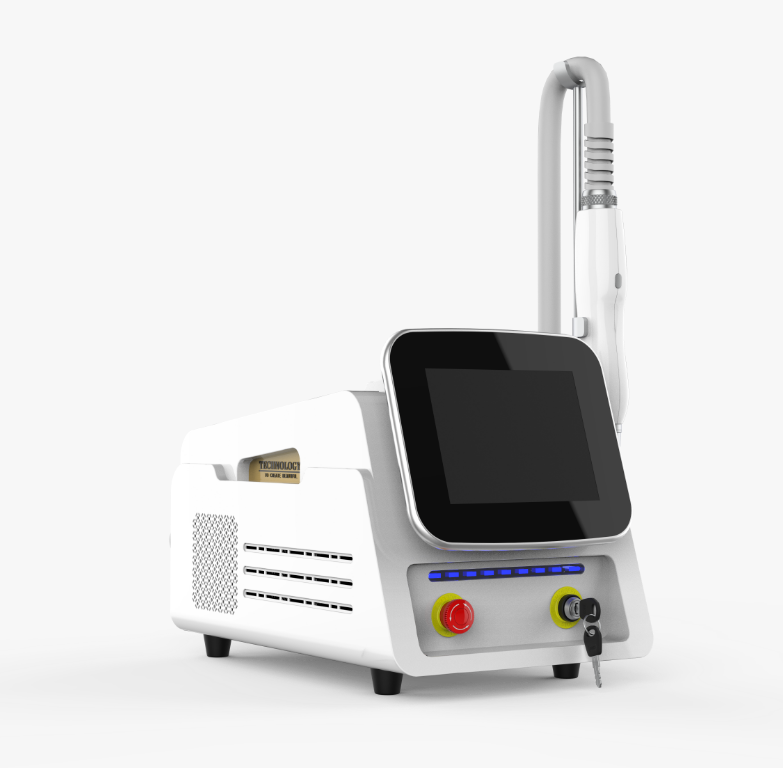

Front View

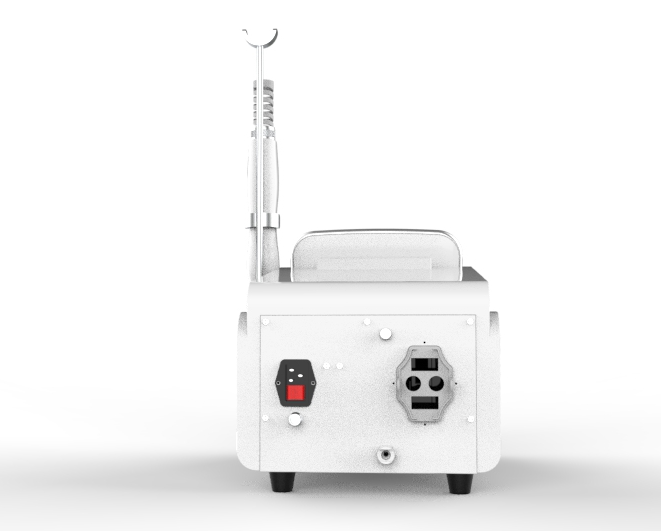

Back Side

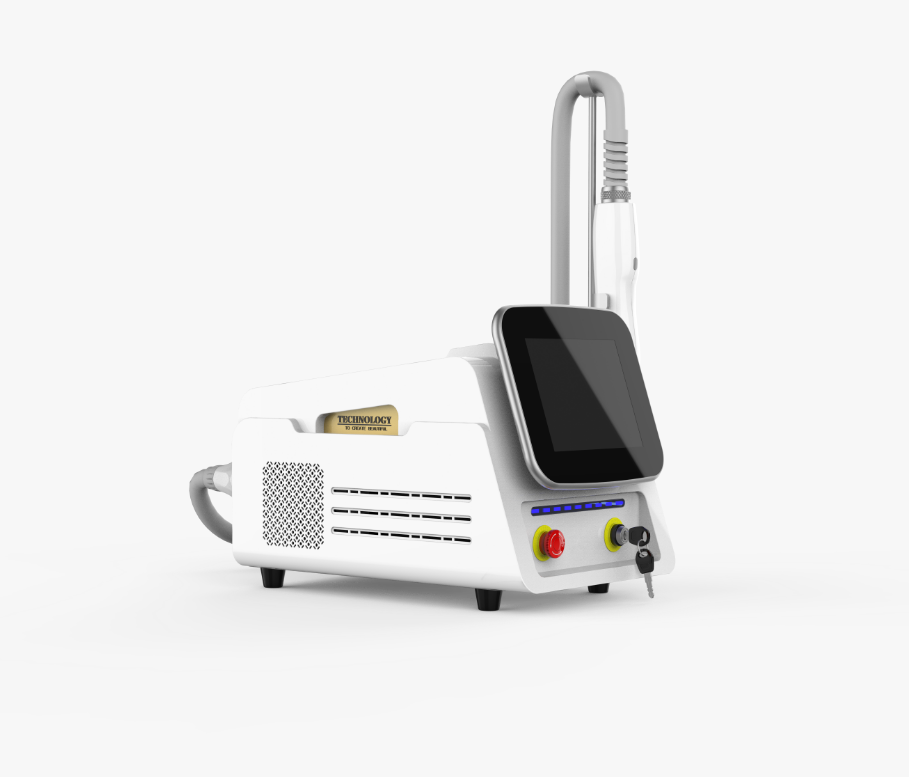

Treatment

SKU: NDYAG-TR-MACHINE

Q-switched ND YAG Laser Tattoo Removal Machine — Professional Tattoo & Pigmentation Removal

Professional Q-switched ND YAG laser machine for tattoo removal, pigmentation treatment, and carbon peel facial. Dual wavelength 1064nm + 532nm with optional 1320nm. Nanosecond pulse technology for safe and effective ink fragmentation. CE & ISO 13485 certified. Compatible with our full range of ND YAG handpieces, flash lamps, and treatment tips.

Wavelength
1064+532nm
Pulse
Nanosecond
Energy
Up to 1000mJ
Freq
1-10Hz
In Stock
📦 DHL/FedEx 5–10 Days
📋 MOQ: 1 Unit

Key Highlights

⚡

Dual Wavelength 1064nm + 532nm

1064nm for black/dark ink and dermal lesions; 532nm for red/orange ink and superficial pigmentation. Optional 1320nm for skin rejuvenation.

🎯

Nanosecond Q-switched Pulses

Short pulse duration (nanosecond level) shatters ink particles without thermal damage to surrounding skin — gold standard for tattoo removal.

🔧

Modular Handpiece System

Swap between single lamp single rod, single lamp dual rod, and carbon peel handpieces in seconds. Easy maintenance and upgrade.

🛡️

CE & ISO 13485 Certified

Medical-grade components with CE and ISO 13485 certification. Built-in water cooling system for continuous operation. 12-month warranty.

Technical Specifications

Parameter Specification
Laser Type Q-switched ND YAG (solid-state crystal)
Wavelength 1064nm (standard) + 532nm (KTP); Optional 1320nm
Pulse Duration Nanosecond (10-9s)
Pulse Energy Up to 1000 mJ @ 1064nm; Up to 500 mJ @ 532nm
Repetition Rate 1–10 Hz (adjustable)
Spot Size 2–8 mm (adjustable via treatment tips)
Pump Source Pulsed xenon flash lamp
Cooling Closed-loop water cooling (built-in)
Screen 8″ color touch screen
Power 110V / 220V, 50/60Hz
Weight ~35 kg
Warranty 12 months (machine); Flash lamp is consumable
Certification CE, ISO 13485

Treatment Applications

Treatment Wavelength Description
Tattoo Removal 1064nm + 532nm Black, dark blue, red, orange tattoo ink removal. Multiple sessions depending on ink depth and color.
Carbon Peel / Black Doll 1064nm Carbon lotion applied to skin, laser shatters carbon for deep cleansing, pore tightening, and skin whitening.
Pigmentation Removal 532nm Freckles, age spots, lentigo, melasma, and other epidermal pigmentation.
Skin Rejuvenation 1320nm (optional) Non-ablative collagen remodeling for fine lines, wrinkles, and acne scars.

Compatible Replacement Parts

This machine uses standard ND YAG parts. We stock all replacement consumables:

FAQ

Q: What's the difference between Q-switch and Pico laser?

Q-switch uses nanosecond pulses; Pico uses picosecond pulses (1,000× shorter). Pico is faster for stubborn tattoos, but Q-switch is the proven gold standard and more affordable. Both use the same ND YAG handpieces and flash lamps.

Q: How many sessions to remove a tattoo?

Amateur tattoos: 3–6 sessions. Professional tattoos: 6–12 sessions. Depends on ink color (black easiest, green/blue hardest), depth, and age. Sessions spaced 6–8 weeks apart.

Q: How often does the flash lamp need replacement?

~106 pulses or ~300 hours of operation. We stock replacement flash lamps in all standard sizes — see our ND YAG Flash Lamp page.

Q: Is training included?

We provide a detailed user manual and operation video. Online training via video call is available upon request.

Get Your Q-switched ND YAG Laser Machine Quote

Tell us your requirements — we'll recommend the right configuration with handpiece, flash lamp spare, and treatment tips included. DHL/FedEx shipping worldwide.
