SKU: IPL-MACH-OPT

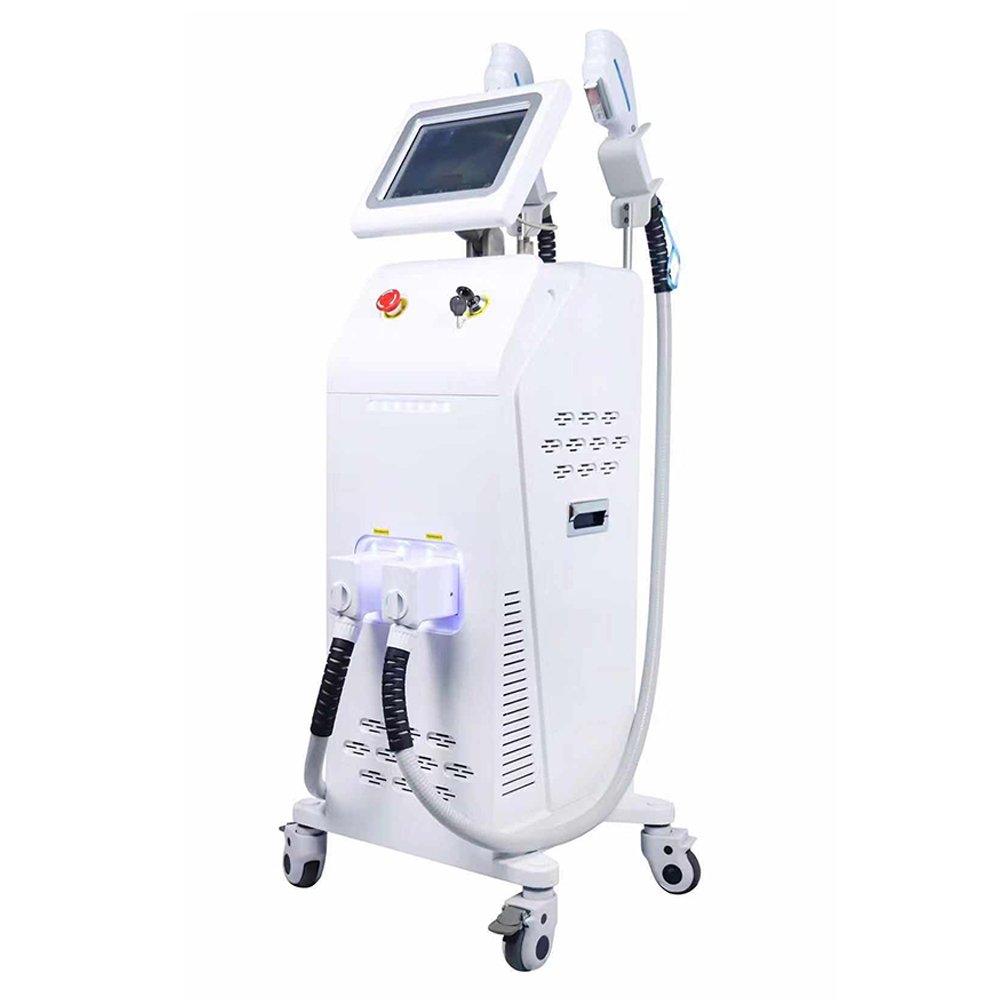

OPT Hair Removal Machine — Optimal Pulse Technology IPL System
Professional-grade OPT (Optimal Pulse Technology) IPL system with flat-top square-wave pulse waveform. Eliminates energy “hot spots” that cause burns — every pulse delivers consistent, uniform energy from start to finish. Multi-purpose platform: hair removal, skin rejuvenation, acne clearance, and vascular treatment with interchangeable filters. CE certified.
OPTIPLFlat-top PulseSafeMulti-purposeProfessional
★★★★★
4.9/5 based on 200+ reviews
In Stock
📦 DHL/FedEx 5-10 Days
📋 MOQ: 1 Unit
Key Highlights
📐
Flat-Top Waveform
Unlike conventional IPL (spiked waveform), OPT delivers a square-wave pulse — energy stays constant throughout the entire pulse duration. No “hot spots” = no burns, more predictable results, safer treatments.
🔄
Multi-Purpose Platform
One machine, 9 filter wavelengths (420-755 nm). Hair removal, skin rejuvenation, acne, vascular, pigmentation — all treatable with the same device by swapping filters. Maximum ROI for your clinic.
🛡️
Safer Than Conventional IPL
The flat-top waveform eliminates the energy spike at pulse onset that causes most IPL burns. Consistent energy means you can treat with confidence — fewer adverse events, happier patients.
⏱️
Adjustable Pulse Duration
1-10 ms adjustable pulse width. Longer pulses for deeper penetration (hair removal), shorter pulses for superficial targets (pigmentation, vascular). Precision control for every treatment type.
Technical Specifications
| SKU |
IPL-MACH-OPT |
| Technology |
OPT (Optimal Pulse Technology) — flat-top square-wave IPL |
| Display |
10.4″ Color Touch Screen |
| Handpiece |

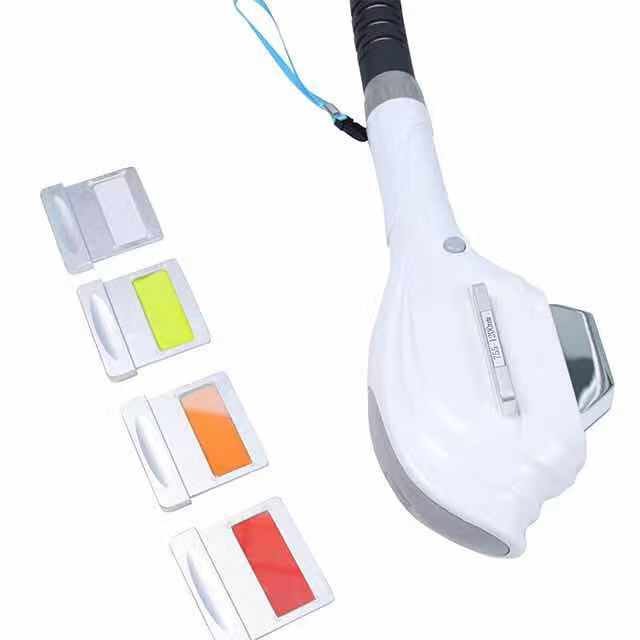

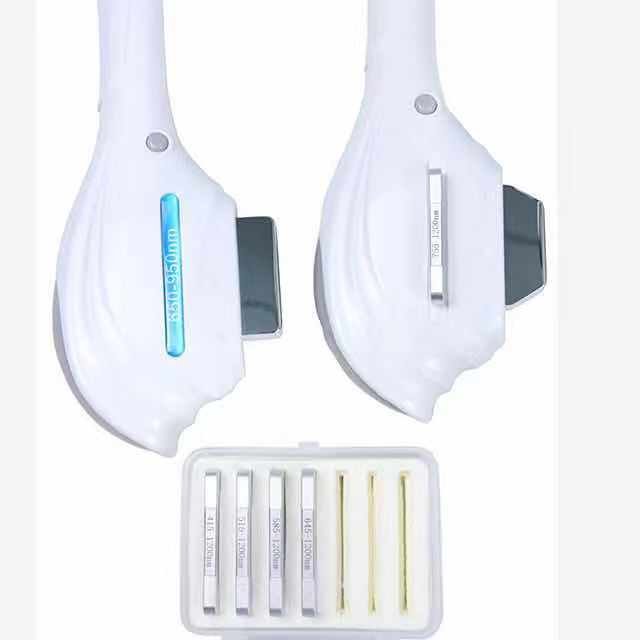

OPT handpiece with sapphire cooling + filter slot (interchangeable) |
| Spectrum |
400–1200 nm (broadband); 9 filter wavelengths available: 420/480/530/560/590/640/690/695/755 nm |
| Pulse Duration |
1–10 ms (adjustable) |
| Pulse Waveform |
Flat-top (square wave) — constant energy throughout pulse |
| Fluence |
10–50 J/cm² (filter-dependent) |
| Spot Size |
15×50 mm (standard); 12×35 mm available |
| Lamp Lifespan |
300,000–500,000 shots (user-replaceable xenon lamp) |
| Cooling System |
Sapphire contact cooling + Peltier TEC + internal water circulation |
| Power |
1,500W · 110–240V, 50/60 Hz |
| Weight |
~38 kg (gross) |
| Dimensions (Packing) |
65 × 55 × 52 cm |
| Certifications |
CE, RoHS, ISO 13485 |
| Warranty |
2 years main unit / 12 months handpiece & lamp |
Treatment Applications
🦵
Permanent Hair Reduction
All body areas including legs, arms, underarms, bikini, back, chest, face. 640 nm filter standard; 690/755 nm for darker skin. ~6-8 sessions.
✨
Skin Rejuvenation (Photorejuvenation)
560 nm filter: collagen remodeling, fine lines, enlarged pores, skin texture, overall skin quality. The most popular IPL treatment. ~4-6 sessions.
🔴
Acne Clearance
420 nm filter: targets P. acnes bacteria with blue-violet light. Reduces active inflammatory acne. ~6-8 sessions, weekly intervals.
🩸
Vascular Lesions
530 nm filter: spider veins, facial telangiectasia, rosacea, cherry angiomas. Peak hemoglobin absorption at 530-540 nm. ~3-5 sessions.
☀️
Pigmentation & Sun Damage
590 nm filter: solar lentigines, age spots, freckles, melasma (low fluence). Penetrates dermis with less epidermal risk. ~4-6 sessions.
What’s Included
✓ Main Machine Unit
✓ OPT Handpiece with Sapphire Cooling
✓ Full Filter Set (420/480/530/560/590/640/690/695/755 nm, 9 pcs)
✓ Power Cable
✓ Foot Pedal
✓ Protective Eyewear (2 pairs)
✓ User Manual (English)
✓ Online Operation Training
✓ 2-Year Main Unit Warranty
Certifications:CERoHSISO 13485
Frequently Asked Questions
What is OPT and how is it different from standard IPL?
OPT (Optimal Pulse Technology) uses a flat-top square-wave pulse — energy stays constant throughout the entire pulse duration. Standard IPL has a spiked waveform where energy peaks sharply then drops. The flat-top eliminates “hot spots” that cause burns, delivering safer, more predictable results. OPT also allows precise pulse duration adjustment (1-10 ms) for different treatment targets.
Which filter wavelengths do I need?
It depends on your treatment menu: 420 nm for acne, 530 nm for vascular/redness, 560 nm for general skin rejuvenation (most popular), 640 nm for hair removal (light skin I-IV), 690-755 nm for hair removal (dark skin IV-V). Our machine includes all 9 filters — you are ready for any treatment from day one.
OPT vs SHR — which should I choose?
Both are excellent technologies. Choose OPT if you want a multi-purpose workhorse (hair removal + rejuvenation + acne + vascular all in one). Choose SHR if hair removal is 80%+ of your business and you want the fastest, most comfortable hair removal experience. Many clinics own both — OPT for versatility, SHR for high-volume hair removal.
How do I know when to replace the xenon lamp?
Replace the lamp every 300,000-500,000 shots or when you notice: (1) reduced treatment efficacy at same settings, (2) visible darkening or clouding of the glass tube, (3) unstable/flickering output, (4) shot counter reaching rated lifespan. Replacement lamps are user-replaceable and always in stock — see our
IPL Xenon Lamp collection.
How should I clean the filter glass?
Use lens cleaning solution or 70% isopropyl alcohol with a microfiber cloth after each treatment session. Never use abrasive cleaners, paper towels, or dry wiping — these scratch the AR (anti-reflective) coating. Inspect filters before each treatment day for coating wear, peeling, or haze.
Do you offer OEM/private labeling?
Yes. Custom logo, color, branding, packaging, and software startup screen available. MOQ for OEM orders is 5 units. Contact us for OEM pricing and production timeline.
Request a Quote
Tell us your country, intended use, and preferred configuration. We reply with pricing and shipping within 2 hours.
