SKU: HIFU-MACH-2D

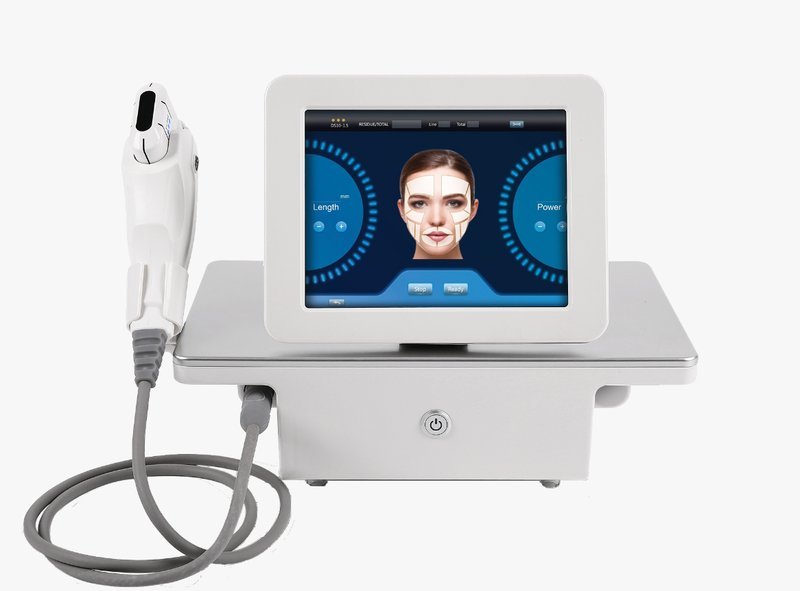

2D HIFU Machine — Entry-Level Single-Line Focused Ultrasound
Professional 2D HIFU system with single-line focused ultrasound technology. 7 cartridge depths (1.5–13mm) covering facial rejuvenation and body contouring. 10,000 shots per cartridge. 15″ touch screen. CE & ISO 13485 certified. The most cost-effective HIFU platform for clinics starting their HIFU treatment journey.
2D HIFUSingle-Line7 DepthsFace & BodyEntry LevelCE MDR
★★★★★
4.8/5 — Best-selling entry HIFU
In Stock
📦 DHL/FedEx 5-10 Days
📋 MOQ: 1 Unit
Key Highlights
🎯
Single-Line Focused Ultrasound
Precision energy delivery to target depths — proven technology used worldwide by entry-level and mid-range clinics
💉
7 Cartridge Depths
1.5–13mm face & body coverage. 10,000 shots per cartridge. Replacement cartridges always in stock
💰
Most Affordable HIFU Platform
Lower upfront investment than 4D/7D/12D — ideal for clinics adding HIFU for the first time or expanding to second location
✅
CE MDR & ISO 13485
Full medical device certification. 2-year warranty. Same quality standard as our premium HIFU lines
Technical Specifications
| SKU |
HIFU-MACH-2D |
| Technology |
2D HIFU — Single-Line Focused Ultrasound |
| Display |
15″ True Color LCD Touch Screen |
| Cartridge Depths |
1.5 / 3.0 / 4.5 / 6.0 / 8.0 / 13.0 / 16.0mm — 7 depths total |
| Frequency |
4 MHz (face cartridges) / 2 MHz (body cartridges) |
| Cartridge Shots |
10,000 shots per cartridge |
| Energy Output |
0.1–3.0 J (adjustable in 0.1 increments) |
| Line Spacing |
1–10 mm (adjustable) |
| Line Length |
5–25 mm (adjustable) |
| Working Modes |
Pulse Digital Output / Continuous Mode |
| Power |
150W · 110–240V, 50/60 Hz |
| Weight |
16 kg (gross) |
| Dimensions (Packing) |
57 × 49 × 59 cm |
| Certifications |
CE (MDR 2017/745), ISO 13485, FDA Registered |
| Warranty |
2 years main unit / 12 months handpiece & accessories |

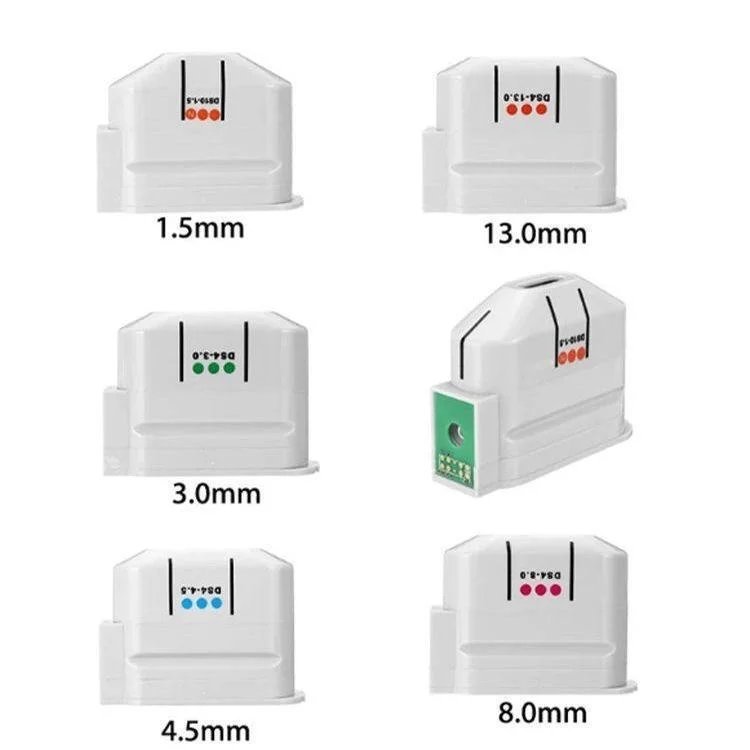

Cartridge Configuration — 7 Depths
| Depth |
Target Layer |
Frequency |
Shots |
Area |
Best For |
| 1.5mm |
Epidermis / Superficial Dermis |
4 MHz |
10,000 |
Face |
Fine lines, pore tightening, skin texture |
| 3.0mm |
Deep Dermis |
4 MHz |
10,000 |
Face |
Deep wrinkle reduction, collagen stimulation |
| 4.5mm |
SMAS Layer |
4 MHz |
10,000 |
Face / Neck |
Face lifting, jawline contouring, neck tightening |
| 6.0mm |
Subcutaneous Tissue |
2 MHz |
10,000 |
Body |
Arms, double chin, small body areas |
| 8.0mm |
Shallow Fat |
2 MHz |
10,000 |
Body |
Abdomen, flanks, moderate fat reduction |
| 13.0mm |
Deep Fat |
2 MHz |
10,000 |
Body |
Thighs, buttocks, deep abdominal fat |
| 16.0mm |
Deepest Fat |
2 MHz |
10,000 |
Body |
Stubborn fat, large body contouring |
Treatment Applications
👩
Full Face Rejuvenation
1.5mm → 3.0mm → 4.5mm layered protocol. Reduces fine lines, deep wrinkles, and lifts cheeks & jawline. ~300-600 shots for ages 20-35, ~600-1,000 for ages 35-60.
🧵
Neck & Décolletage
Treats sagging neck skin, double chin, and “turkey neck.” 4.5mm depth targets SMAS for visible lifting. ~200-400 shots.
🏋️
Body Contouring
6.0–16.0mm body cartridges for abdomen, flanks, thighs, and arms. Non-invasive fat reduction. ~600-1,200 shots per area.
✨
Skin Texture & Brightening
1.5mm shallow depth improves overall skin smoothness, reduces enlarged pores, and evens skin tone. Safe for all Fitzpatrick skin types.
What's Included
✓ Main Machine Unit

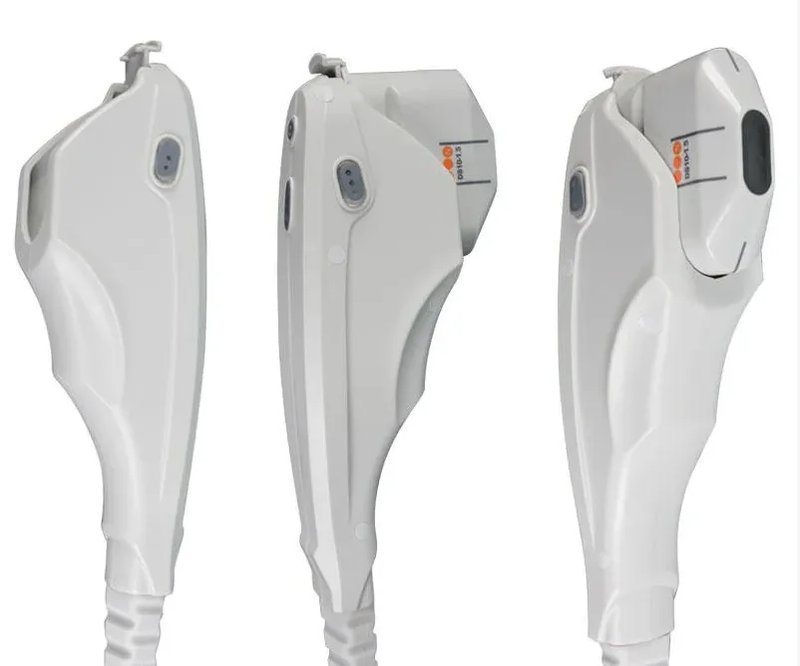

✓ 2D HIFU Handpiece
✓ Starter Cartridge Set (optional depths)
✓ Power Cable & Adapter
✓ User Manual (English)
✓ Online Operation Training
✓ 2-Year Main Unit Warranty
✓ Lifetime Technical Support
Certifications:CE MDR 2017/745ISO 13485FDA RegisteredRoHS Compliant
Frequently Asked Questions
Who is the 2D HIFU machine best for?
2D HIFU is ideal for clinics starting HIFU treatments for the first time, estheticians adding skin tightening to their service menu, or established clinics opening a second location on a budget. It delivers the same core HIFU technology (focused ultrasound at 1.5–16mm) at the most accessible price point. If your client base is primarily facial rejuvenation with occasional body treatments, 2D covers your needs without the premium of 4D/7D/12D systems.
What's the difference between 2D and 4D/7D HIFU?
The “D” number refers to the number of delivery points per pulse. 2D uses single-line focused ultrasound — one energy point per shot. 4D uses 12-line MMFU delivering 12 points simultaneously for faster coverage. 7D uses 7 delivery points with an exclusive 2.0mm eye-area cartridge. 2D is the most affordable; 4D is faster; 7D is the most versatile. All three use the same underlying HIFU technology and generate the same 65-70°C thermal coagulation at target depths.
How many treatments per cartridge?
Each cartridge is rated for 10,000 shots. A full-face treatment uses 300-600 shots (ages 20-35) or 600-1,000 shots (ages 35-60), so one face cartridge delivers approximately
10-30 full-face sessions. Body cartridges deliver 8-15 sessions per cartridge depending on area size.
Replacement cartridges →
What is the warranty and support?
2-year warranty on main unit, 12 months on handpiece and cartridges. Free online operation training included. Lifetime technical support via WhatsApp and email. Defective parts replaced immediately — no need to ship the entire unit back.
Do you offer OEM and what is the MOQ?
Yes. Custom logo, color, branding, and packaging available. MOQ for OEM orders is 5 units. Standard (non-OEM) MOQ is 1 unit — you can order a single machine as a sample. Contact us for OEM pricing and timeline.
Request a Quote
Tell us your country and cartridge preferences. We reply with pricing and shipping within 2 hours.
